36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells

36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells

MOQ: 1
Standard Packaging: According to Stardard Export Packing. Carton box, wooden box, wooden pallet
Delivery Period: samples: 8days, bulk order: 30days
Payment Method: L/C, T/T
Supply Capacity: 10000per
Detail Information
Place of Origin
China
Brand Name
OEM & ODM
Certification
CE UN38.3 MSDS
Model Number
OEM & ODM
Model Number:
36V 10Ah
Battery Type:
Lithium Battery
Nominal Voltage (V):
36V
Nominal Capacity (Ah):
10Ah
Dimension:
390*110*75mm
Cycle Life:
>800 Times
Cell Type:
18650-2500mAh
Composed Type:
10S4P 40pcs Cells

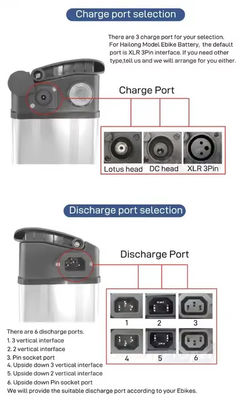

Charging Port:
3 Pins
Discharge Port:
2 Pins
Highlight:

48v 20ah ebike battery Pack

,

10S4P 48v 20ah ebike battery

,

48v 17ah ebike battery 40pc Cells

Product Description

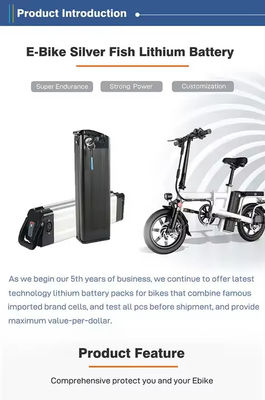

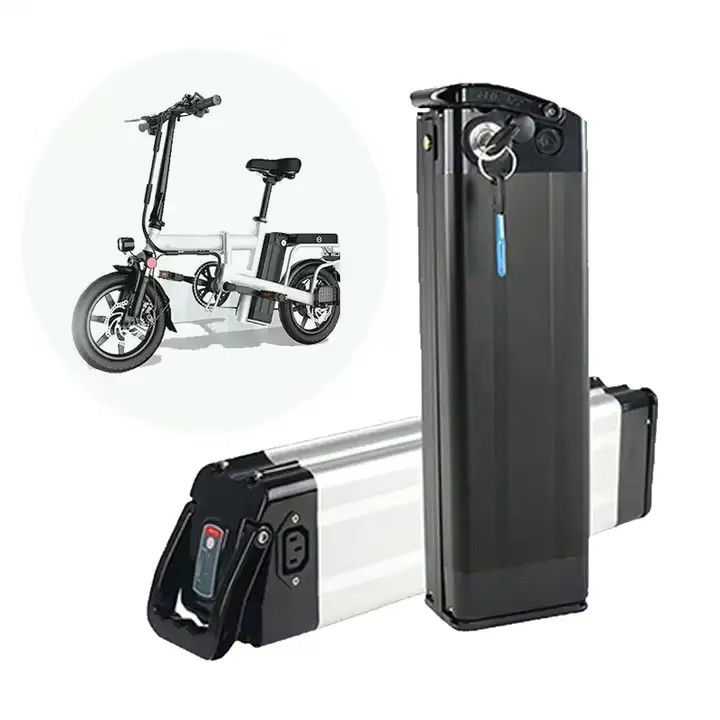

36V and 48V E-Bike Battery Packs: Lithium-Ion Solutions


Introducing our reliable lithium-ion battery packs for electric bicycles:

36V E-Bike Battery Pack: Designed for efficient power delivery and enhanced performance in e-bikes.
48V Electric Bicycle Battery: Provides increased voltage for improved speed and range in electric bicycles.
Lithium-Ion Technology: Offers superior safety, thermal stability, and a longer lifespan compared to traditional batteries.
Lightweight Design: Easy to install without adding unnecessary weight to your bike.
Low Maintenance: Engineered for hassle-free operation, minimizing upkeep requirements.
These 36V and 48V lithium-ion battery packs are the perfect solution for powering your electric bicycle efficiently and reliably.



High Quality Ebike Battery has excellent performance with diversity models.

- A series of standard Ebike battery models.
- Battery voltage, capacity and shape can be customized.
- Fit for 250W, 350W, 500W, 750W,1000W motor.

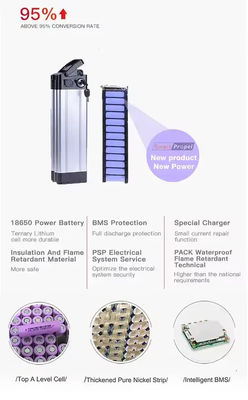

- 20A BMS or customized BMS for your options.

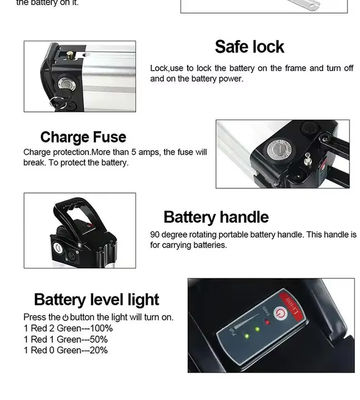

Power Indicator to monitor the battery pack energy status.
- Nearly 10 Years Lithium ion Battery Factory with competitive prices.
- CE certificate approved.

Product Paramenters
Model
36V10Ah
Configuration
10S4P
Nominal voltage
36V
Nominal capacity
10AH
Charge voltage
42V
Standard charge current
≤3(A)
Continuous discharge current
≤20A
Discharge cut off voltage
28V
Net weight
4.0kg
Case dimension
390*110*75mm
Cycle life
1000 times
Warranty
1 year
Available colors
Silver/Black
Charge temperature
0 ~ 45°C
Discharge temperature
-20 ~ 60°C
BMS function
over-charge,over-discharge,over-current,short circuit protection
Charge method
CC/CV
Charge port
XLR or Appointed
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 0

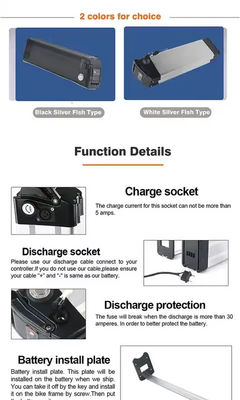

Details Images
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 1
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 2
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 3
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 4
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 5
More Silver Fish Dimension & Models
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 6
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 7
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 8
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 9
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 10
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 11
Customer Reviews
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 12
36V 48V 17ah 20ah Ebike Battery Pack Lithium Ion 10S4P 40pc Cells 13



FAQ

Q: What type of electric bike battery?

A: It is a Li-ion battery, Chemical is Li(NiCoMn)O2.

Q: What is the difference between a Li-ion battery,Ni-Mn battery and Lead acid battery?

A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

Q: What's the temperature range of charge and discharge?

A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells are used on this electric bicycle battery?

A: Different capacities with different cells, we make the battery with original A grade Brand and high-quality domestic cells, all can be customized as your requests.

Q: Does your e-bike battery come with a charger?

A: All of our e-bike batteries come with charger.We have normal charger and fast charger. If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?

A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.

Q: Can you provide OEM and ODM service?

A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
