3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One

MOQ: 1
Standard Packaging: According to Stardard Export Packing. Carton box, wooden box, wooden pallet
Delivery Period: samples: 8days, bulk order: 30days
Payment Method: L/C, T/T
Supply Capacity: 10000 per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
OEM & ODM
Certification
CE UN38.3 MSDS
Model Number
OEM & ODM
System Voltage:
51.2V100Ah
Output Power Range:
5KW~20KWH
Specification::
Type C, Flashlight, Jump Starter, Cigar Lighter
Operating Temperature:
-10°C-40°C
Size::
450*150*600mm
Weight ::
29KGS
Communication Port:
RS485, CAN
Highlight:

3Kwh hybrid solar power inverter

,

5Kwh hybrid solar power inverter

,

3kw solar inverter Lifepo4 Battery

Product Description

Class A All-in-One LiFePO4 Battery with Inverter: 3kWh, 5kWh, 25.6V, 48V, 51.2V (100Ah & 200Ah) for Solar Systems


Introducing our Class A all-in-one LiFePO4 battery system, featuring an integrated inverter for seamless solar integration:

Capacity Options: Available in 3kWh and 5kWh to meet various energy storage needs.
Voltage Variants: Choose from 25.6V, 48V, and 51.2V for optimal compatibility with your solar system.
Current Options: Available in 100Ah and 200Ah to provide ample power for your applications.
LiFePO4 Technology: Ensures enhanced safety, longer lifespan, and superior thermal stability compared to traditional battery types.
Integrated Inverter: Simplifies installation and operation, allowing for efficient energy conversion and use.
Durable Construction: Built to withstand diverse environmental conditions, ensuring reliable performance.
Low Maintenance: Designed for hassle-free operation with minimal upkeep required.
This Class A all-in-one LiFePO4 battery with inverter is the perfect solution for optimizing your solar energy system.



Product Description
Item
Model
2.56KWh+3KW
5KWh+5KW
Battery Module
Voltage
25.6V
51.2V
Battery capacity
100Ah
Charge voltage
29V
58V
Discharge cut-off voltage
20V
42V
Charge current
50A
Max charge current
120A
100A
Discharge current
120A
100A
Max discharge current
150A
100A
Max peak current
100A
200A
Communication method
RS485/CAN
Hybrid Inverter
Power
3KW
5KW
Output Voltage
230VAC
Frequency
50Hz/60Hz
input power (PV)
3KW
5KW
Input voltage range (PV)
30-400VDC
120~430VDC
Communication connect port
/
WiFi (optiona))
Parameter
Protection Degree
IP21
Material/Colour
Metal/White
Size
450*150*600mm
500*170*720mm
Weight
29Kg
56Kg
Temperature
Charge:0℃-50℃
Discharge;-15℃-60℃
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 0
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 1

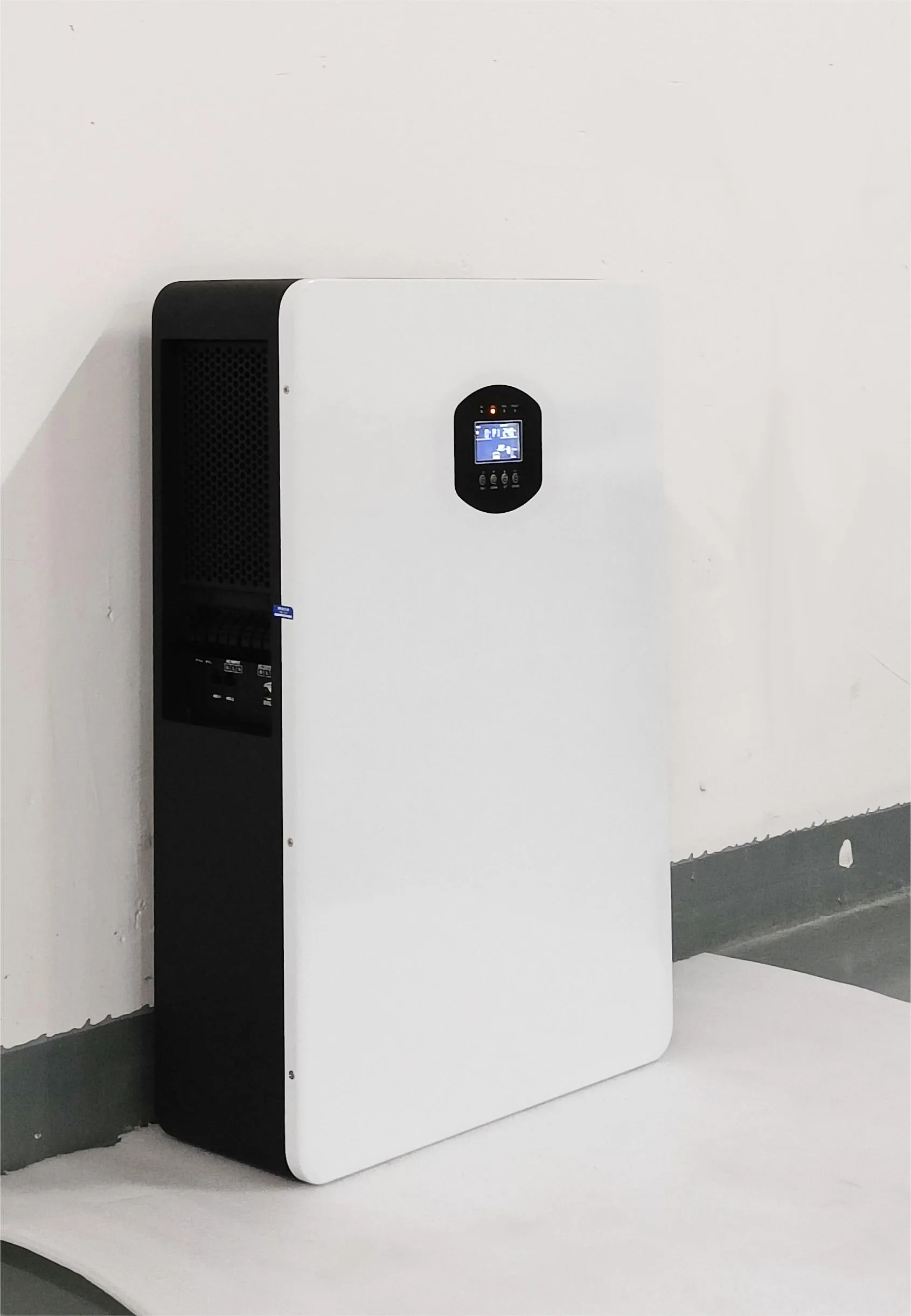

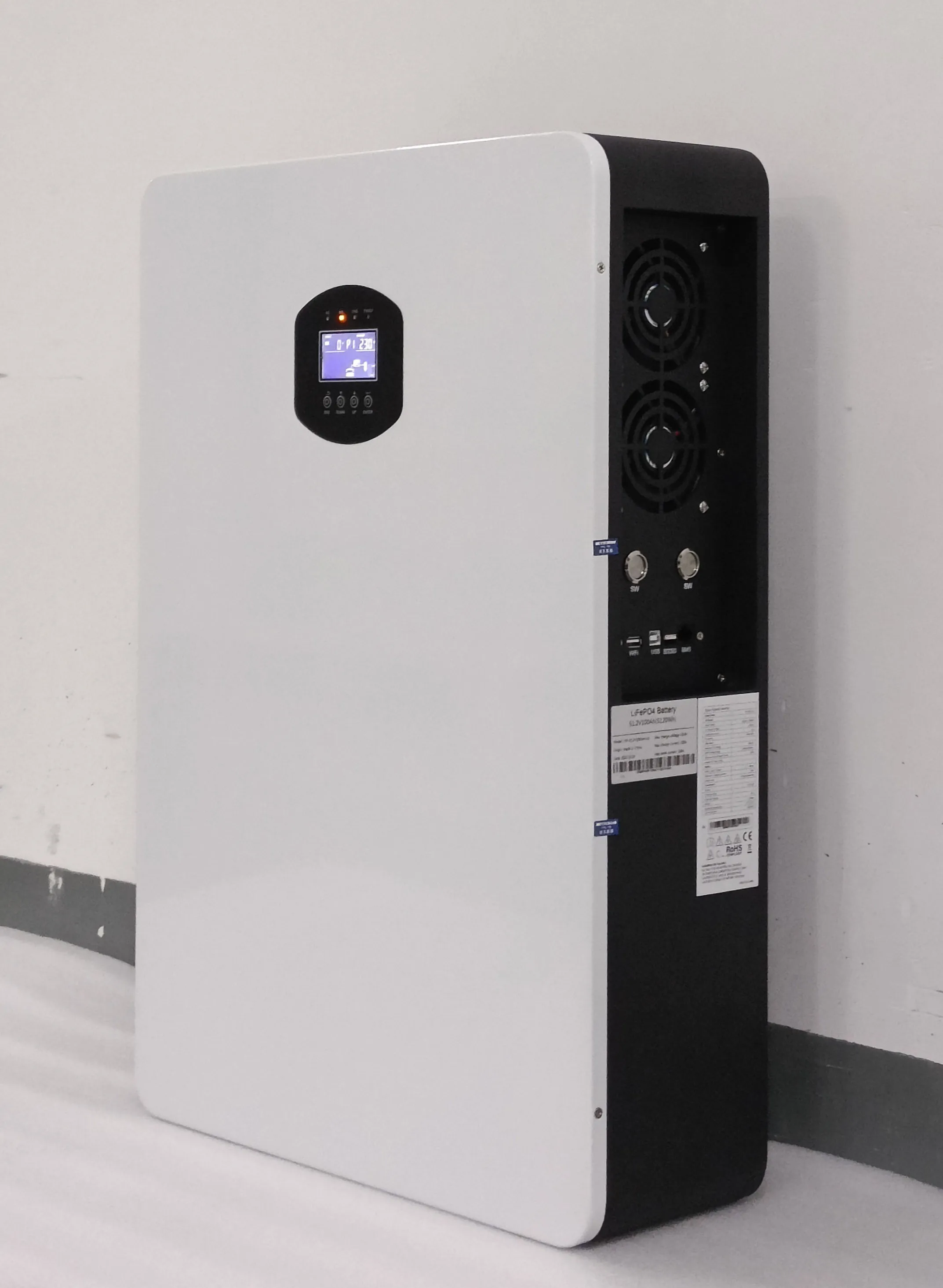

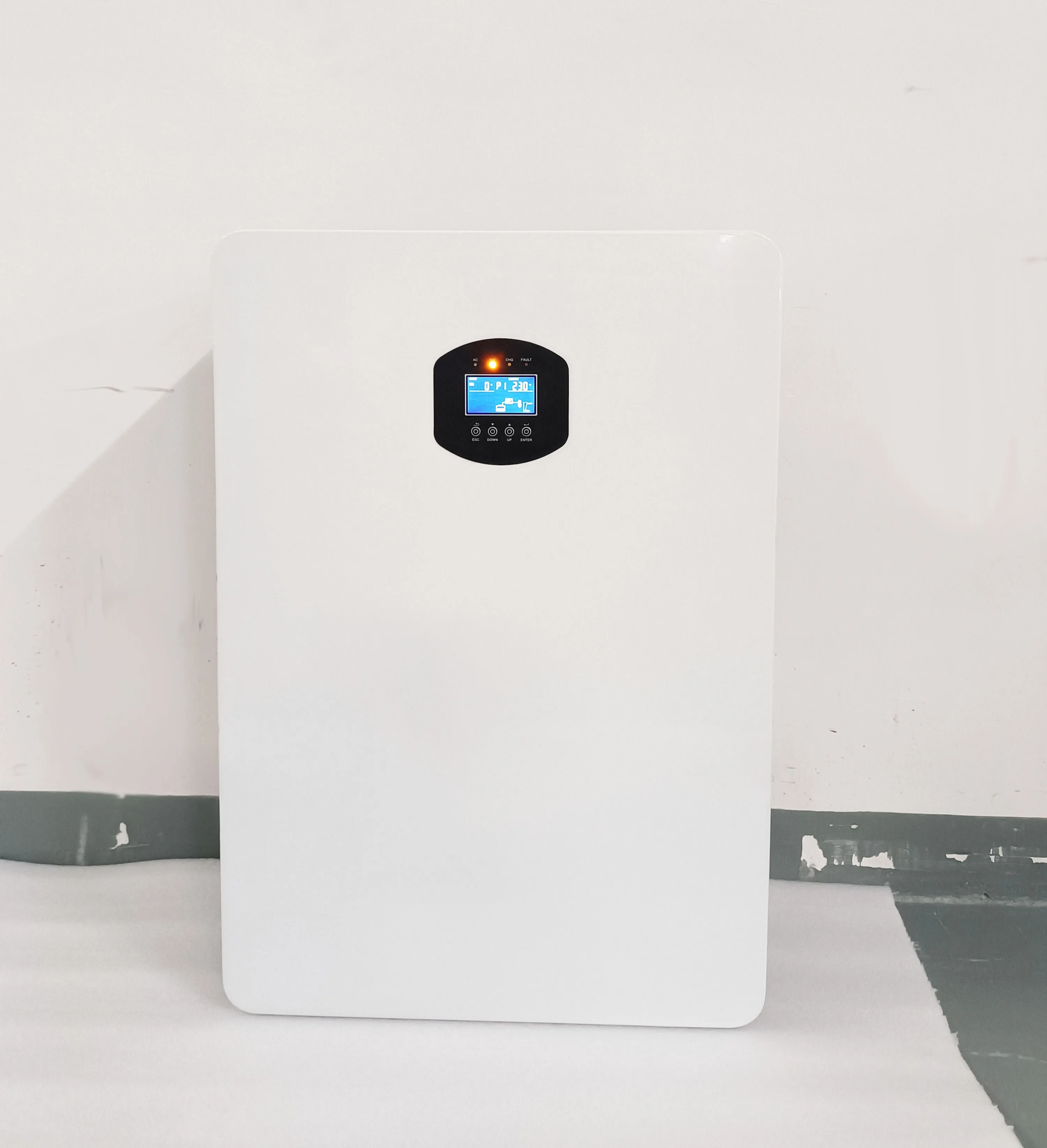

Two installation modes:
Wall-mounted And Floor-mounted
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 2
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 3
Product Case
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 4
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 5
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 6
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 7
Why Choose Us
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 8
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 9
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 10
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 11
3Kwh 5Kwh 25.6V 48V 51.2V Hybrid Solar Power Inverter Lifepo4 Battery Class A All In One 12





FAQ


Q: Are you trading company or manufacture?
A:We are the factory and manufacture, providing top high quality products and competitive price.

Q: What kind of certificates your products have?
A: CE,FCC,RoHS,PSE,UN38.3,MSDS,etc,which is able to satisfy most country's importing requirements.

Q: Can we have our brand logo?
A: Yes , please send us the artwork of your design, we have a professional team which is having rich experience on OEM&ODM,butthere is a minimum order quantity required.

Q: What's your usual payment terms for orders?
A:We accept terms of T/T, West union, L/C, PayPal and Alibaba Trade assurance(VISA, Mastercard,T/T, PayPal, Apple Pay,G-Pay,and Online Transfer),etc.

Q: Can I get a solar generator power station sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.

Q: Can you supply solar panels?
A:Yes, we have solar panels, we can recommend you suitable solar panels.

Q: What's the warranty?
A: All of our products passed professional QC test, we offer 1 year warranty for non-artificial damage for our distributor.

Q:What should I do if goods have problem?
A:Each item will be packed very well before shipping.Please make sure the package is intact and check all items carefully according to your order when you received the goods.
1 ) If you find any item has quality problem, please take clear photos and contact us within 7 days after shipment arrived.
2 ) If you find something missing, please checking all boxes first, if still no find, please take photos and contact us within 7 days.
